Tropical cyclone forecast error charts - north Indian Ocean

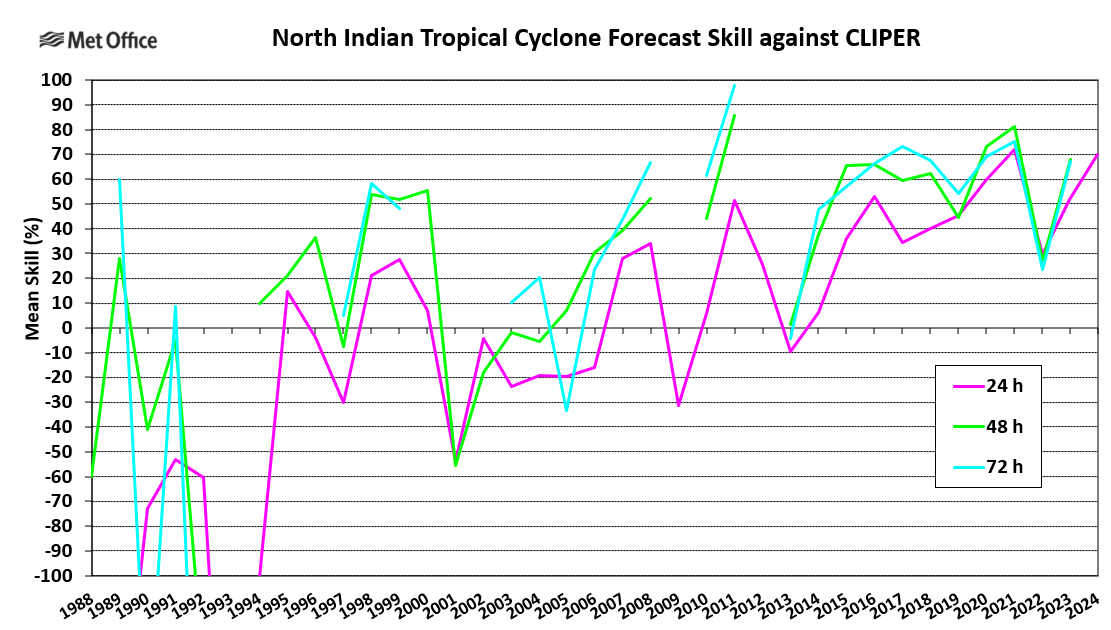

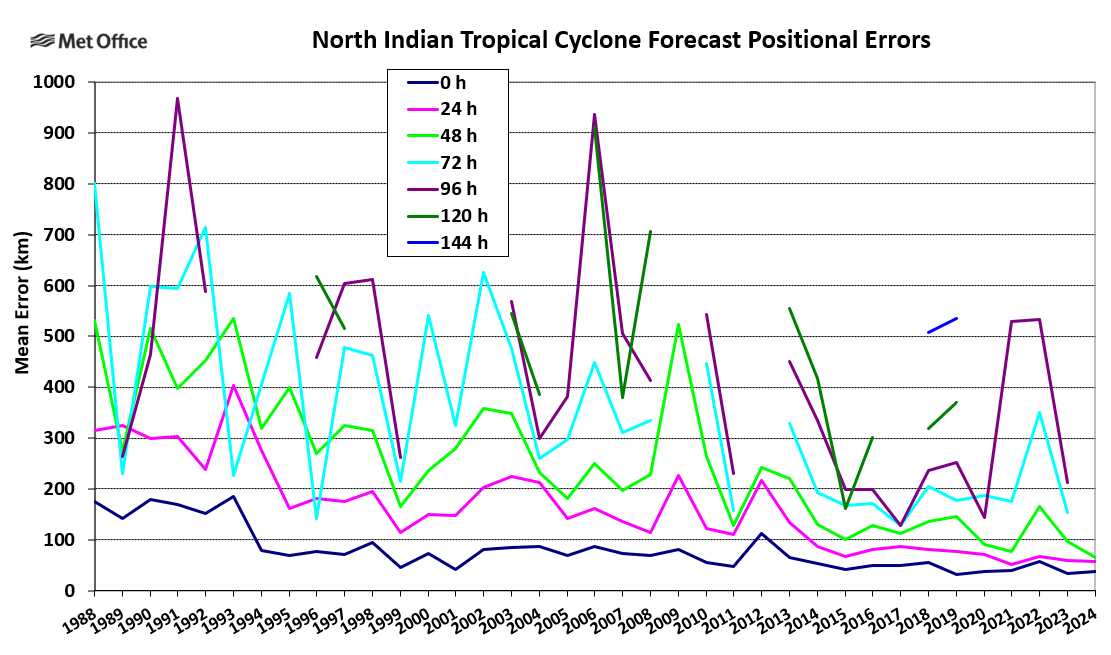

The graphs below show a variety of measures of forecast errors and forecast skill for the Met Office global model forecasts of tropical cyclones in the North Indian region.

For those not familiar with the types of error statistics used in tropical cyclone forecast assessment and their sign conventions a diagrammatic explanation is available.
