How we measure sunshine and radiation

How we measure radiation

Four different components of radiation in the atmosphere are measured routinely at some synoptic land stations:

  • Global radiation - total downwelling short-wave radiation (visible wavelengths to 4 µm), measured on a horizontal surface
  • Diffuse radiation - global radiation minus the direct component from the sun, also measured on a horizontal surface
  • Direct radiation - radiation coming from the sun and not the rest of the sky, measured at normal incidence
  • Long wave radiation - downwelling infra-red wavelengths from 4 µm upwards

Global radiation is measured by a pyranometerMeasurement of the diffuse components requires a tracking device that ensures that the sun is obscured by a ring or a tracking shading device and is only undertaken at a few principal radiation stations. All instruments operate by directing incoming radiation onto the black-painted upper surface of a thermopile. This generates a temperature gradient across the thermopile which in turn produces a voltage proportional to the intensity of the radiation.

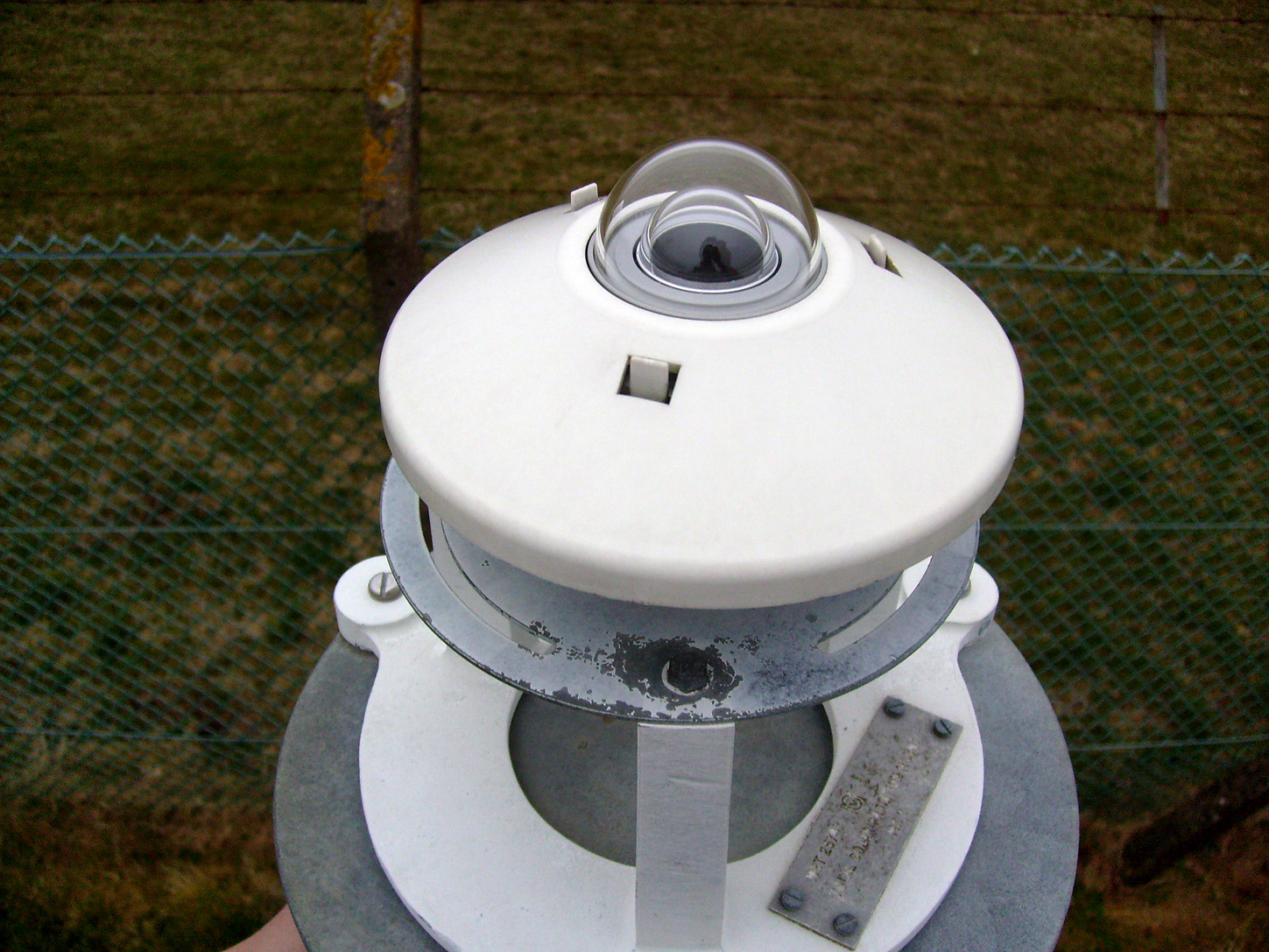

Photo of a pyranometer, an instrument used to measure global radiation.

The correct exposure of any radiation or sunshine instrument at the observing site is very important.

Ideally the horizon should be level in all directions, although the poleward arc is less important for sunshine and direct radiation measurements. In practice this is rarely the case and sites need to be assessed and graded according to the distribution of obstacles around the horizon.

All instruments are calibrated by reference to absolute cavity radiometers, standard radiation instruments that are maintained by the Met Office. These standards are precision pyrheliometers incorporating an electrical heater on the sensing element, the input of which can be measured very accurately. Intercomparisons made at Davos Switzerland ensure traceability to the world radiation standard.

How we measure sunlight

For a great many years the only instrument for measuring sunshine duration was the Campbell-Stokes sunshine recorder. The original instrument was invented by Campbell in 1858 but the later card-holding version was a development by Stokes in 1879.

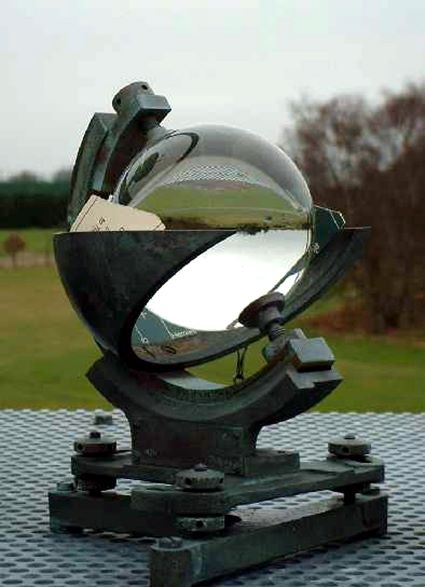

A Campbell-Stokes sunshine recorder, once the only instrument to measure sunshine duration.

Most of the climate record was collected using this instrument and it continues in use today at many non-automated climate stations. A glass sphere focuses the sun's direct radiation on a graduated card and the length of the burn trace on the card corresponds to the duration of sunshine.

This method of measurement significantly overestimates sunshine duration on days when the sun is frequently shaded by passing clouds. At many automated stations a modern sunshine sensor is used in its place (see image below). It uses an array of differently exposed photodiodes to estimate the intensity of direct radiation. A threshold intensity of 120 Wm-2 defines the occurrence of full sunshine.

A modern sunshine sensor, often used at automated stations to measure sunshine duration.
